How to add a custom attribute to create user page in OIM PS3


When you create a UDF, it is created only in the back-end, and is not available in the page for use on which you want it to be displayed.

Note:
·        Adding a custom attribute is always in relation to one of the following entities: User, Organization, Role, or Catalog.
·        When catalog UDFs are customized to show in the first page of the Create Role wizard, they are also shown in the summary page of the wizard. But when role UDFs are customized to show in first page of the Create Role wizard, they are not shown in the summary page of the wizard. The summary page must be separately customized for these role UDFs to be displayed.

To display a UDF in a page in Oracle Identity Self Service

Creating Custom UDF

Log in to Oracle Identity System Administration.

Create and activate a sandbox


Click the component under System Entities on the left navigation pane of Identity System Administration
In the Custom section of the Fields tab, click the Create icon. The Select Field Type dialog box is display


Select a field type you want to create. The available field types are:
  • Text: Select this option to create a text field.
  • Number: Select this option to create a numeric field.
  • Checkbox: Select this option to create a checkbox field.
  • Date: Select this option to create a date type field.
  • Lookup: Select this option to create a lookup field in which users can search and select the value.
The Field Type selected is Text in this example and click on OK


Provide the new user defined filed details and Click on Save and Close.
  • Display name : Director
           The custom field label that is displayed in the form
  •  Display Width : Director
The display width in characters. If you do not specify a value for this field, then the length of the field is taken as default.
  • Searchable : Checked
  • Maximum Length - The maximum length of the field in character

The UDF is added to User form and close Manage User

Go back to Sandbox and Publish the Sandbox. Take the export of the sandbox for further use.


After adding a UDF through the User form, logout of both Oracle Identity System Administration and Oracle Identity Self Service, and then login again to be able to see the newly added UDF and use it for customization.

Adding UDF on Create User Form

     Log in to Oracle Identity Self Service as the system administrator

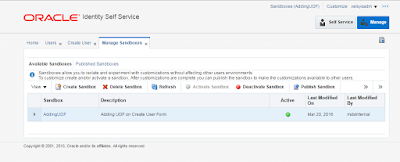

          Create and activate a sandbox
       To do so, Click on Create and Provide the sandbox name and Descrption
Click Manage. The Home tab displays the different Manage option. Click Users. The Manage Users page is displayed
From the Actions menu, select Create. Alternatively, you can click Create on the toolbar. The Create User page is displayed with input fields for user profile attributes

Click Customize at the upper right corner of the page to open Web Center Composer

Enter values for all mandatory fields


Select Structure tab
Select the section of the page on which you want to add the UDF

In the Confirm Task Flow Edit dialog box, click Edit to confirm the edit task. The corresponding ADF component in the object tree is selected
Select the panelFormLayout component, and click the Add icon. The Add Content dialog box is displayed.

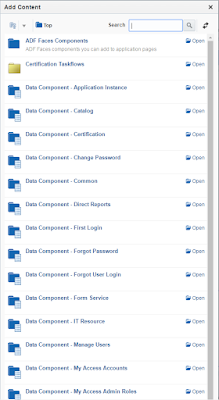

 Click on Add icon and Add Content dialog box is displayed


Depending on the area or entity  the UDF is added then select the Data Component and View object

For User entity, given some Data Component and View Object




User
Create User
Data Component - Catalog
userVO

Modify User
Data Component - Catalog
userVO

Search Users
Data Component - Manage Users
UserVO1

View User Details
Data Component - Manage Users
UserVO1

My Information
Data Component - My Information
UserVO1

New User Registration
Data Component - User Registration
UserVO1


























In this example, i am adding the custom attribute on Create User Form so i used Data Component Catalog and ViewObect userVO


 Scroll to find the UDF that you added and click Add. If the UDF is not displayed, then refresh the content by clicking the Refresh icon at the top right hand corner of the dialog box.
  Depending on the custom attribute that you created in creating Custom attributes section and the type of UDF that you want to display, select one of the following items from the menu:
For a UDF of Text or Number type:
a.      ADF Output Text
b.     ADF Output Text w/Label
c.      ADF Output Formatted
d.     ADF Output Formatted w/Label
e.      ADF Input Text
f.      ADF Input Text w/Label
g.     ADF Label
h.     ADF Readonly Input Text w/Label
i.       ADF Table Column
For a UDF of Checkbox type:
j.       ADF Select Boolean Checkbox
k.     ADF Table Column
For a UDF of Date type:
l.       ADF Input Date w/Label
m.   ADF Table Column
For a UDF of Lookup type:
n.     ADF Input List Of Value (select only for searchable PickList)
o.     ADF Select One Choice (select only for non-searchable PickList; this option is not visible for a searchable PickList for which you must select ADF Input List of Value)
p.     ADF Table Column (select when adding a column within an af:table)
For example, if you have created a UDF of Text type, then select ADF Input Text w/Label
  Click Close to close the Add Content dialog box.

From the object tree on the Editing Page, select the UDF on the page, and click the Show properties icon. The Component Properties page is displayed.
On the Display Options tab:
  Select Auto Submit.
    If you have added the UDF on the user form, then in the Value Change Listener field, enter
         #{pageFlowScope.cartDetailStateBean.attributeValueChangedListener}.
If you have added the UDF on a form other than the user form, then copy the value of the Value Change Listener field from any of the existing fields on the form and paste it as the value of the Value Change Listener field for the newly added UDF
Here are some more properties that you can add based on requirement
 If you want to mark this attribute as mandatory, then change the Required and Show Required properties to true. To set the Show Required property, select the Show Required option. In the Required field, select Expression Editor, and in the Expression Editor field, enter the value as true.
 If you want to display this attribute as read-only, then select the checkbox for the Read Only property.
If you want to bind this attribute to a custom-managed bean method, then change the Value property.
The custom-managed bean method must include a call to the original method binding. For more information
   Click OK.
    Click Close to leave customization mode.
 It is recommended that you export the sandbox, in case if you intend to move the change from test to production environment.
Publish the sandbox. For detailed instructions on publishing a sandbox,
Remove UDF
To remove a UDF, you can use the customization mode to open the WebCenter Composer. In the customization mode, select the component or UDF that you want to remove, and then delete it or set the rendered property on that UDF to false.
----Nagaraju Gorrepati
