How to integrate OAM with Oracle Mobile Authenticator(OMA)

Integrate OAM 11g R2 PS2 and Oracle Mobile Authenticator

Assumptions:

-- Oracle Access Manager 11g R2 PS2 installed and configured
-- Oracle HTTP Server(OHS) installed
-- OAM WebGate for OHS 11g installed and configured

Click Here to watch testing DEMO video!!!

Steps:

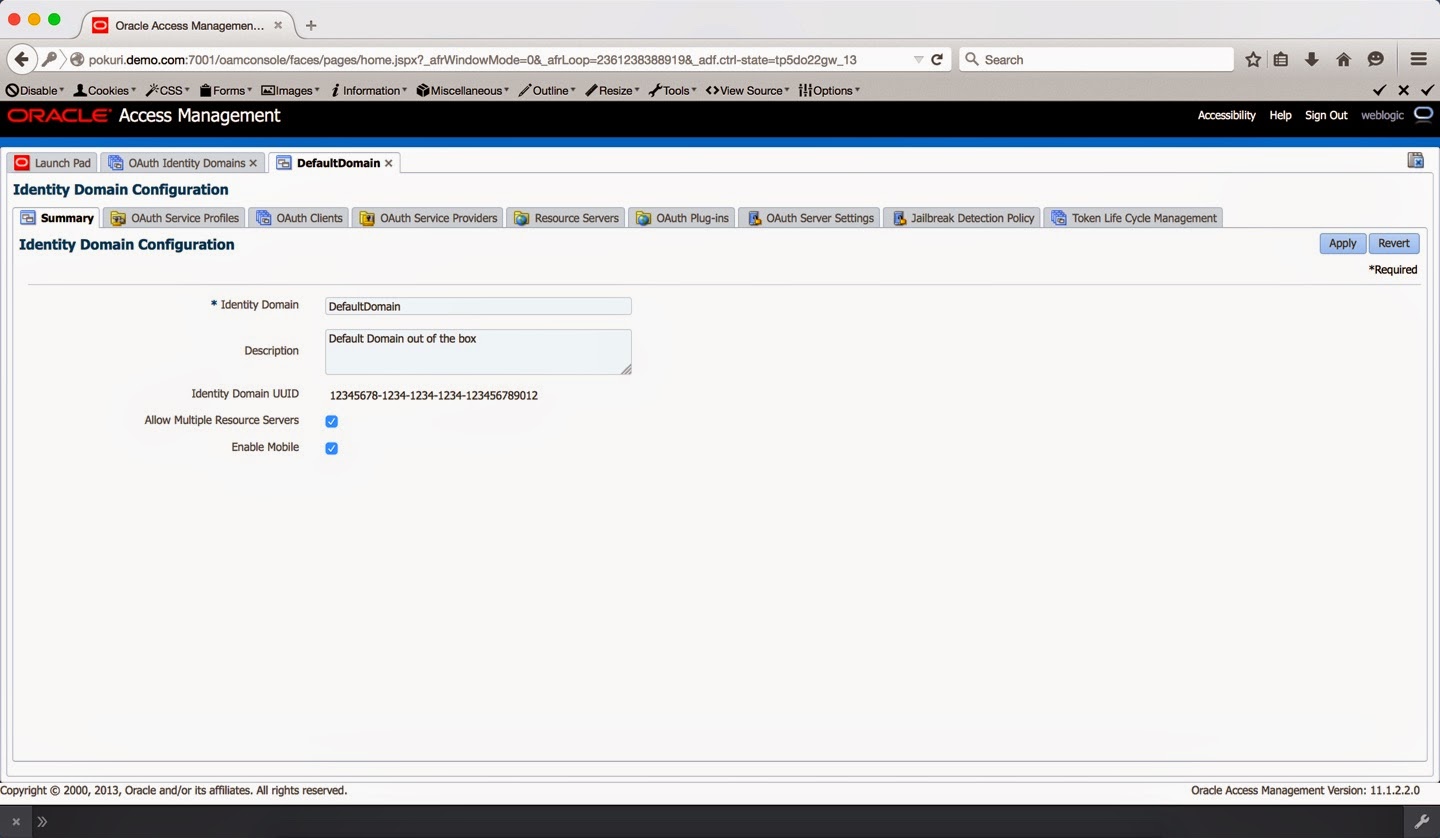

-- Enable Mobile and Social Service in OAM Admin Console(If not already enabled)




-- Configure OAuth for OMA(Oracle Mobile Authenticator)














-- Edit "TOTPModule" Authentication Module settings in OAM Admin Console

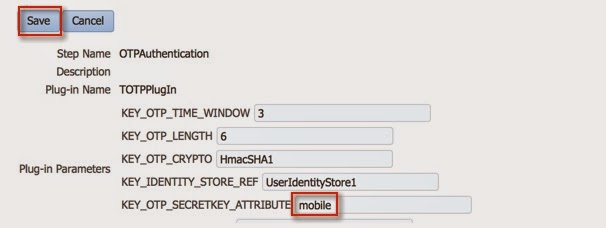

-- Configure "TOTPPlugin" parameters in "Plug-ins" as shown in the below screen shots




-- Create New OTP Authentication Scheme. In this screen shot below i used existing "LDAPScheme"  and duplicated to create new OTP Authentication Scheme.

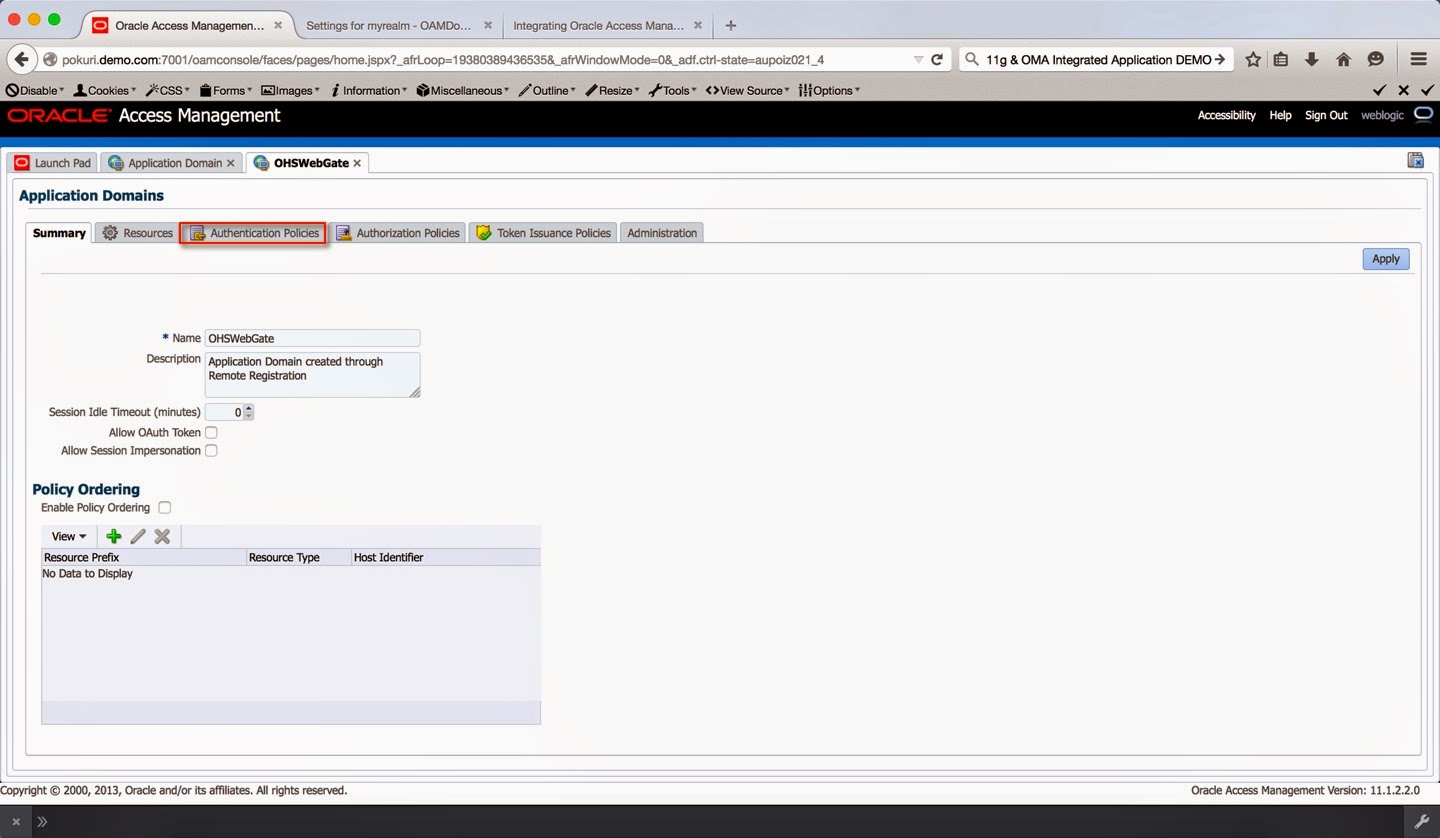

-- Update Application domain













Oracle Mobile Authenticator Configuration with Oracle Access Manager

-- Download and Install "Oracle Mobile Authenticator" App from "Google Play" or "Apple Store"
-- Create a HTML page with below content and drop it in any web server(which you should be able to access from your mobile device where you install)

Sample


<html>
    <head>
        <title>Oracle Mobile Authenticator</titile>
    </head>
    <body>
        <a href="oraclemobileauthenticator://settings?LoginURL::=http://<<HOSTNAME>>:14100/ms_oauth/resources/userprofile/secretkey">Click Here</a>
    </body>
</html>



-- Access HTML page from mobile device browser. It will navigate to "Oracle Mobile Authenticator" and prompt to update. Click on "Accept".





-- Click "OK".


-- Now click on "Sign In"

-- Enter valid OAM credentials and click on "Submit".


-- If everything is good and credentials are valid One-time Password will be configured as shown in the screen shot below.

Note: Multiple user accounts can be configured in same Oracle Mobile Authenticator.

Sample Screen Shot:




Testing:

-- Access OAM protected resource


-- Enter valid credentials and click "Login"


-- Get One-Time Password from Oracle Mobile Authenticator associated to the login ID "sivapokuri"



-- Enter One-Time Password got from Oracle Mobile Authenticator and click "Login"



-- Displayed welcome page.



Hope this will be useful!!

-- Siva Pokuri.
